Welding Turning Rolls - 2000mm Mig welding robot with Megmeet Ehave CM 350AR – Yunhua Detail:

Big Reach Mig Welding Robot









2000mm arm length Robot is our biggest reach Mig welding robot. And sold very good especially in Europe

for it’s big length, compact structure and stable performance. This Mig welding robot can be used for

 bicycle accessories, electric car accessories, guardrails, agricultural machinery, engineering machinery,

furniture accessories, auto parts, car seats, sports equipment, medical equipment.







Product Introduction

      Yooheart Robot supplies  robotic welding arms that can provide impeccable repeatability to produce consistent and high-quality welds. Our welding robots for sale help enhance efficiency and decrease cycle times. Using automated welding systems and processes allows you to cut on direct labor costs as well as conserve materials. EVS can customize robotic welding systems to match every client’s different requirements. We have mig welding robotsarc welding robots, and CNC welding robots that are all ISO and CE certified. Choose Yooheart’ premium-quality welding arms and we will ensure the effectiveness of your manufacturing processes.

Technology Parameters

Axis Payload Repeatability Capacity Environment Weight Installation
6 6KG ±0.08mm 3.7KVA           0-45℃         20-80%RH(No forsting) 280KG Ground/Hoisting
Motion range J1 J2 J3 J4 J5 J6 Arm length
±165º +80º~-150º +125º~-75º ±170º ‘+115º~-140º ±220º 2000mm
Max speed J1 J2 J3 J4 J5 J6
145º/s 133º/s 145º/s 217º/s 172º/s 500º/s

Main Configuration

All high Quality products


Yooheart Robot

Robot body

1, HY1006A-200 is a Compact design, light, small size, big reach and specially used for Mig welding robot.

2, It includes all welding bags, easy programming, and good performance.

3,High presicion, and be installed on ground, ceilling and wall





Megmeet Ehave CM 350AR

1, Stable arc in full current and low spatters, be suitable for different welding processes;

2, Highly concentrated arc and strong penetration, 20% less than other machines in heat input;

3, Excellent Gap-bridging capability and less sensibility in wire extension;

4, Welding parameter locking and function expansion can be quickly set up o control panel without more configuration outsourcing;


Megmeet welder

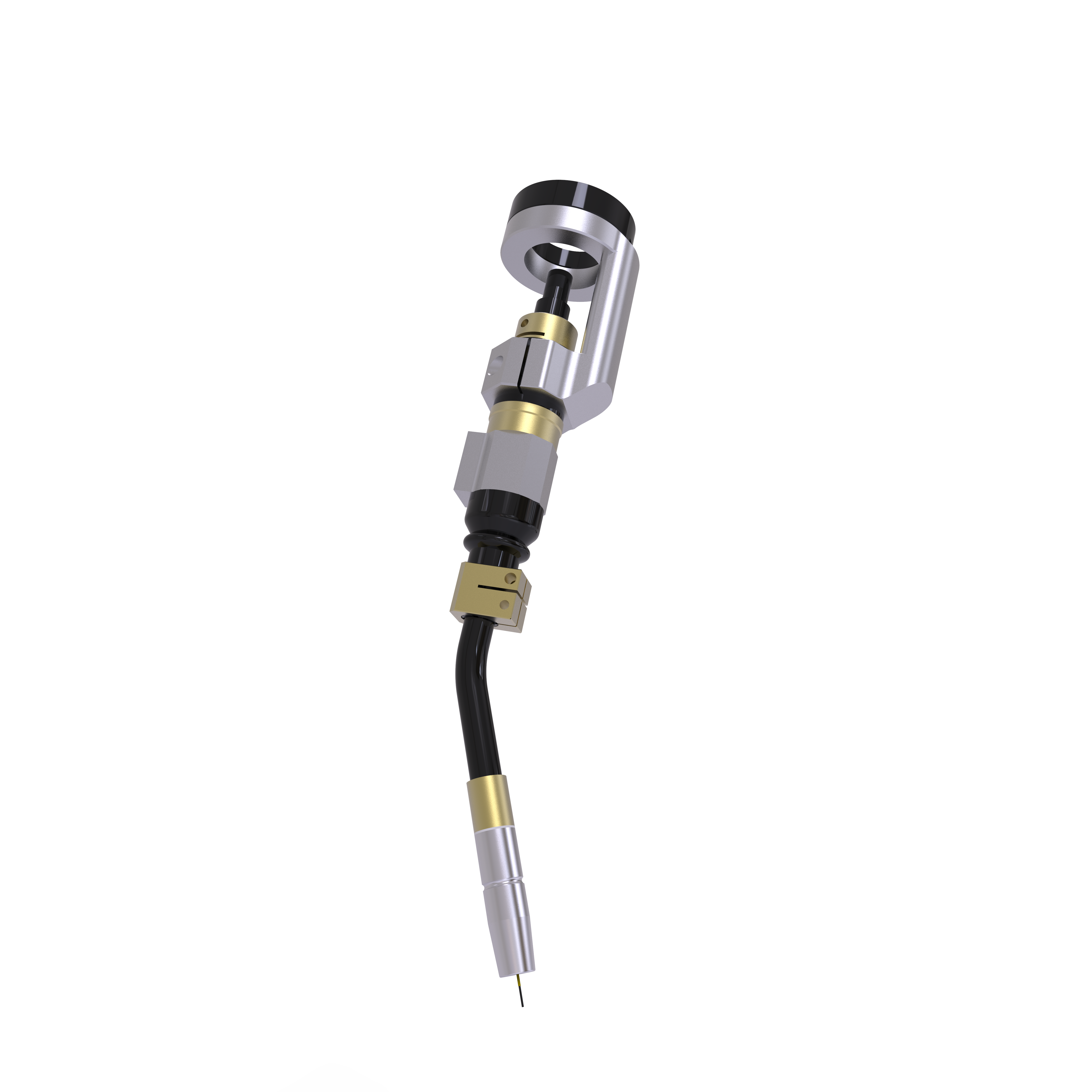

Welding Torch

Welding Torch

1, Welding torch has small size big reach;

2, Torch neck is changeable

3, Standard torch has anti-collision device;

4, Customize different angle of torch neck

Wire feeder

1, Jobsite Productivity and Efficiency;

2, Cable Length Compensation, Extreme Reliability;

3, Heavy Duty Drive Motor with Tachometer Control


Wire feeder

DETAIL SHOW

All high quality products

HIGH Precision

Compact design

All Chinese parts

2000mm welding robot welding torch
Robot wire feeder

HIGH Quality

Flexible configuration

Stable performance

Compact

Simple in structure

Easy to maintain

More cost-effective

Wire feeder supportor
stable Robot welding

HIGH Precision

High speed and stability precise path welding solutions

WHY CHOOSE US

performance quality process

Welding Robot

YOO HEART Robot is our best seller, if your work piece is not complicated, this workstation will help you speeding up your productivity. This station includes one 6 axis welding robot, welding power source, one axis positioner and some other useful peripheral equipment. Once you receive this unit, the robot can work after all plugs in. we can also supply simple clamps for you so that you can fit up the work piece stable and fast.

After sale service

Every customer should know YOOHEART robot good before they buy it. Once customers have one YOOHEART robot, their worker will have 3-5 days free training in YOOHEART factory. There will be a wechat group or whatsapp group, our technicians who are responsible for after sale service, electrical, hard ware, software, etc. will be in. If one problem happens twice, our technician will go to customer company to solve the problem.

After sale service

All of Yooheart robot will packed Strictly comply with export packing requirements.










CERTIFICATION

Official certified quality assurance

FQA

Q. How can robot communicate with each other?

A. Two robots can communicate with each other through ether net and 485. You can choose in the teaching pendant directly, it’s been written in the system before delivery.

Q. Will you connect torch clean station for your working station?

A. That’s an optional item, if you need, we can configure for you.

Q. How can I know your working station is good or not?

A. It’s good for you coming to your factory to view around and test the working station yourself. Actually, this way is good for both you and us, we know you better and you know us better.

Q. Can my workers stay your company for training?

A. That’s good, the training in our factory is free, you only need to charge your own accommodation.

Q. Will you give me special price for the first working station?

A. We can talk about this.
